BORE 0.180" and up with an Indexable Insert
Steel and solid carbide shanks
Solid carbide shanks with coolant through holes
80 Degree diamond 0.156" I.C. indexable inserts
0.002", 0.007", and 0.015" insert corner radii available from stock
Chip control inserts
Coated and uncoated grades
Polycrystalline Diamond tipped inserts
Cubic Boron Nitride tipped inserts
Steel and solid carbide shanks
Solid carbide shanks with coolant through holes
60 Degree triangle 0.160" I.C. indexable inserts
0.002", 0.007", 0.015", and 0.031" insert corner radii available from stock
Chipbreaker inserts
Coated and uncoated grades
Polycrystalline Diamond tipped inserts
Cubic Boron Nitride tipped inserts

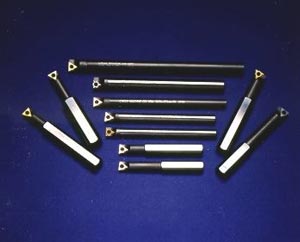

"Q" Series Boring Bars & Inserts
Steel and solid carbide shanks
Coolant through bars available
60 Degree triangle 0.250" I.C. indexable inserts
0.002", 0.007", 0.015", and 0.031" insert corner radii available from stock
Chipbreaker inserts
Coated and uncoated grades
Polycrystalline Diamond tipped inserts
Cubic Boron Nitride tipped inserts

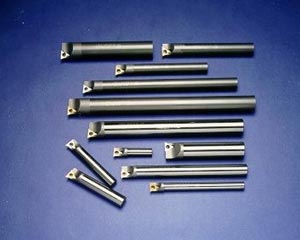

"S" Series Boring Bars & Inserts
Steel and solid carbide shanks
Coolant through bars available
60 Degree triangle 0.375" I.C. indexable inserts
0.002", 0.007", 0.015", 0.031", and 0.063" insert corner radii available from stock Chipbreaker inserts
Coated and uncoated grades
Polycrystalline Diamond tipped inserts
Cubic Boron Nitride tipped inserts
Circle Machine Co.-Mfgs of Circle Precision Cutting Tools, 1323 South Shamrock Avenue, Monrovia, CA 91016. Tel: 626-357-7046; Fax: 626-359-8284.
